Intersil ISL90460 Digitally Controlled Potentiometer Datasheet

The ISL90460 is a digitally controlled potentiometer from Intersil that can be used in a wide variety of applications, including LCD contrast control, parameter and bias adjustments, industrial and automotive control, pressure, temperature, position, chemical and optical sensors, laser diode driver biasing, gain control and offset adjustment

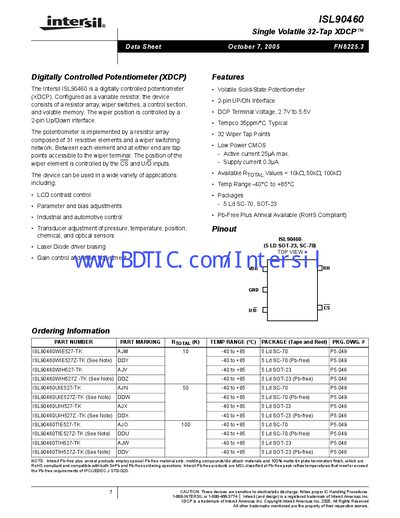

Intersil ISL90460 Digitally Controlled Potentiometer Datasheet - cover page
Brand
Intersil
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
7
File format
PDF
File size
194 KB
Published
27 March, 2012
Updated
30 September, 2023
MD5 checksum
4BCDB692713DD2955E1519D292D81659

About this manual

The ISL90460 is a digitally controlled potentiometer (XDCP) that can be configured as a variable resistor. It features a 31‑element resistor array, wiper switches, a 2‑pin Up/Down interface, and volatile memory for storing the wiper position.

The document provides electrical specifications, absolute maximum ratings, timing diagrams, pin descriptions, ordering information and package dimensions for both SC‑70 and SOT‑23 variants.

What's inside

  • Features
  • Absolute Maximum Ratings
  • Recommended Operating Conditions
  • Potentiometer Specifications
  • DC Electrical Specifications
  • Timing Specifications
  • Pin Descriptions
  • Package Dimensions
  • Ordering Information

Specifications

Supply voltage range2.7 V to 5.5 V
Active current (max)25 µA
Standby supply current0.3 µA
Number of wiper tap points32
Available total resistance values10 kΩ, 50 kΩ, 100 kΩ
Operating temperature range-40 °C to +85 °C
Package typesSC‑70, SOT‑23

Frequently asked questions

What interface controls the wiper position?

The wiper position is controlled by a 2‑pin Up/Down interface.

What is the standby supply current of the ISL90460?

The standby supply current is 0.3 µA.

How many resistive elements are in the array?

The resistor array is composed of 31 resistive elements.

What are the voltage limits for the CS, U/D and VCC pins?

The voltage on CS, U/D and VCC with respect to GND is –1 V to +7 V.
