This datasheet provides detailed information on the Atmel ATtiny24A/ATtiny44A/ATtiny84A 8-bit microcontrollers.

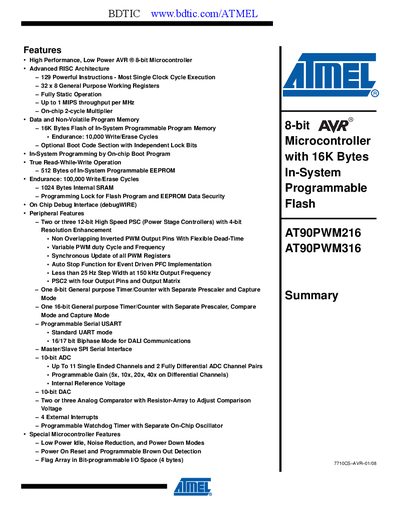

The AT90PWM216/316 is a low‑power CMOS 8‑bit AVR microcontroller featuring up to 1 MIPS per MHz, 16 KB flash, 512 B EEPROM, and 1 KB SRAM. It includes three Power Stage Controllers, dual 10‑bit ADC/DAC, USART with DALI mode, and multiple power‑saving modes.
The device is offered in SOIC‑24, SOIC‑32, and QFN‑32 packages and operates from 2.7 V to 5.5 V with an extended temperature range of –40 °C to +105 °C. Detailed pin descriptions, block diagrams, and electrical characteristics are provided throughout the document.
| Operating Voltage | 2.7 V – 5.5 V |
|---|---|
| Operating Temperature | -40 °C to +105 °C |
| Flash Memory | 16 KB |
| EEPROM | 512 B |
| SRAM | 1 KB |
| ADC Resolution | 10‑bit |
| ADC Channels | Up to 11 single‑ended, 2 differential pairs |
| DAC Resolution | 10‑bit |
| General‑purpose I/O | 53 pins |
It operates from 2.7 V to 5.5 V.
The device includes 16 KB of in‑system programmable flash memory.
It provides up to 11 single‑ended ADC channels and two fully differential channel pairs.
