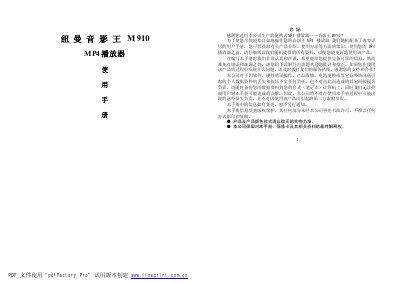

Neumann audio king M910 MP4 player user manual, introduces product use methods, precautions and function descriptions
This manual introduces the Newman M910 MP4 player, describing its hardware layout, button functions, and supported media formats. It guides users through charging, power management, basic navigation, and using features such as video playback, audio playback, photo viewing, recording, and camera mode.
Additional sections cover computer connection, safe removal of the device, troubleshooting common issues, and detailed technical specifications. The guide also includes safety precautions and warranty information to help users maintain the device properly. This manual is written in Chinese.
| Dimensions | 91mm×60mm×19mm |
|---|---|
| Display | 2.5‑inch TFT true‑color LCD |
| Supported Audio Formats | MP3, WMA |
| MP3 Bitrate | 32 Kbps–320 Kbps |
| WMA Bitrate | 22 Kbps–128 Kbps |
| Supported Video Format | ASF |
| Camera Sensor | 1.3 MP CMOS |
| Supported Image Format | JPEG |
| Recording Format | MP3 |
| Recording Sample Rate | 48 kHz |
| Internal Memory | 256 MB / 512 MB FLASH |
| Headphone Output Power | L 5 mW + R 5 mW |
| Frequency Response | 20 Hz–20 kHz |
| Signal‑to‑Noise Ratio | ≥ 90 dB |
| USB Interface | USB 1.1 |
| Battery | 1200 mAh Li‑ion |
| Operating Temperature | 0 °C – 40 °C |
The player’s software reserves part of the flash memory and uses different unit calculations, so the OS reports a slightly smaller capacity.
Press the reset button on the left side of the device, then press the power button to restart the player.
Use the system’s “Safely Remove Hardware” function before unplugging the USB cable to avoid data loss.
A typical full charge takes about 5 hours; the first two charges can be up to 8 hours, but charging should not exceed 12 hours.
