This is a quick start guide for DS7600, introducing the features and characteristics of the product, including power output, signal to noise ratio, connection, power supply, etc.

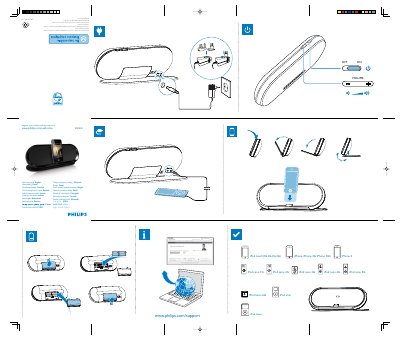

The Philips DS7600 Quick Start Guide provides essential information for setting up and using the portable audio device, including compatible iPod and iPhone models. It includes safety notices, power connection details, and basic operation steps.
Technical specifications are listed, covering amplifier output power, signal‑to‑noise ratio, AUX input, power requirements, dimensions and weight, helping users understand the device’s performance and physical characteristics.
| Amplifier Rated Output Power | 2×5 W RMS |
|---|---|
| Signal‑to‑Noise Ratio | 77 dB |
| AUX Input | 0.75 V RMS, 22 kΩ |
| Input Voltage | 100–240 V~ 50/60 Hz, 0.7 A |
| Output Voltage / Current | 7 V DC, 2 A |
| Power Consumption (operating) | 3.5 W |
| Weight (main unit) | 0.8 kg |
The amplifier is rated at 2 × 5 W RMS.
The device accepts 100–240 V~ 50/60 Hz at 0.7 A.
It consumes 3.5 W while in use.
