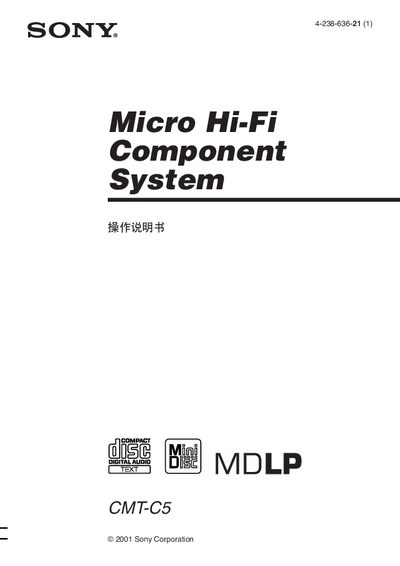

This document is an instruction manual for the Micro Hi-Fi Component System released by Sony Corporation in 2001. The document provides information on the precautions for using the product, installation methods, and instructions for operating its various functions.
This manual begins with safety instructions such as not exposing the unit to rain, keeping ventilation clear, and handling the laser classification label. It then guides the user through connecting the system, attaching the AM and FM antennas, wiring the left and right speakers to the SPEAKER terminals, and installing the power cord. Instructions for preparing the remote control, replacing its CR2025 lithium battery, and powering the unit are also included.
The second part covers everyday operation: setting the clock and timers, using the standby power‑saving mode, playing CDs and MDs, recording to MD, adjusting sound with bass boost and equalizer presets, and tuning FM/AM radio stations. The manual also lists the system specifications, optional accessories, and regulatory information. This manual is written in Chinese.
| Frequency response | 2 Hz ~ 20 kHz |
|---|---|
| Digital audio sample rate | 44.1 kHz |
| Dimensions (W×H×D) | ≈149 mm × 248 mm × 220 mm |
| Weight | ≈4.5 kg |
Slide out the battery cover, insert a CR2025 lithium battery with the positive side up, and push the cover back into place.
Press the CLOCK/TIMER SET button on the remote, use the +/- keys to adjust hours, minutes and date, then confirm with ENTER/YES.
Connect the left and right speaker wires to the SPEAKER terminals on the rear panel.
Do not expose the unit to rain, do not open the case yourself, keep ventilation openings clear, and keep batteries away from children.
