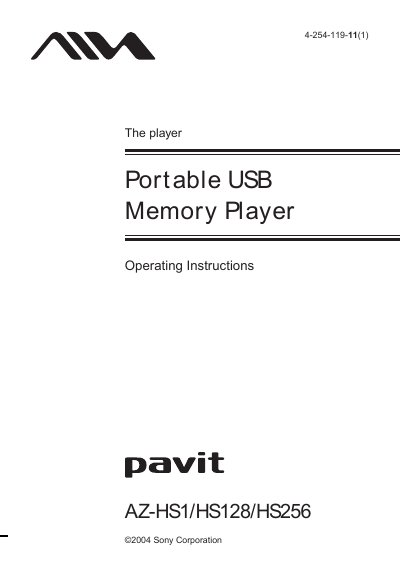

This document provides operating instructions for Sony Corporation's portable USB memory player AZ-HS1/HS128/HS256. The document mentions safety precautions such as fire and shock prevention, and warns against covering the ventilation or placing lighted candles on the apparatus. It also advises users to consult local authorities regarding battery disposal regulations. Additionally, the document mentions the validity of the CE marking and provides information for customers in the United States.
The AZ-HS1/HS128/HS256 is a portable USB memory player built into headphone-style ear pieces. It uses a removable "pavit" USB storage module to hold MP3 files, allowing you to carry your music anywhere.
The manual covers safety warnings, package contents, battery installation, control layout, basic and advanced operations, troubleshooting, and full technical specifications such as supported audio formats, power output, and operating temperature.
| Supported audio file format | MP3, 8‑320 kbps |
|---|---|
| Sampling frequencies | 24/22.05/16/12/11.025/8/32/44.1/48 kHz |
| Frequency response | 20 Hz – 20 kHz |
| Power output (USA model) | 7 mW + 7 mW |
| Power output (Other models) | 3 mW + 3 mW |
| Input (stereo mini‑jack) | 1000 mW + 1000 mW |
| Operating temperature | -5 °C to 35 °C |
| Battery type | One LRO3 (AAA) alkaline battery, 15 VDC |
| Mass | Approx. 129 g (4.5 oz) including battery |
It uses one LRO3 (size AAA) alkaline battery.
Insert the "pavit" into the slot on the right‑ear side of the player as shown in the manual.
The USA model outputs 7 mW per channel (7 mW + 7 mW).
