The Bose FreeSpace 32SE speaker is a 32W speaker designed for surface mounting in indoor or outdoor commercial applications. It features: a Bose HVC (helical voice coil) full-weather drive unit with active equalization for reliable, high-quality sound in a compact enclosure; multiple-tap line transformers for flexible and convenient power settings: 1W, 2W, 4W, 8W, 16W, and 32W (in 70V or 100V configurations); the same equalization as the FreeSpace 32 ceiling speaker; a clean design available in black or white and paintable for a variety of décors; quick-and-easy installation hardware; and a full-weather design for reliable performance in indoor and outdoor applications.
The Bose FreeSpace 32SE is a 32 W loudspeaker designed for indoor or outdoor installation. It offers both 70 V and 100 V line‑level operation with selectable power taps from 1 W to 32 W, and provides a frequency response of 90 Hz‑16 kHz (‑3 dB).

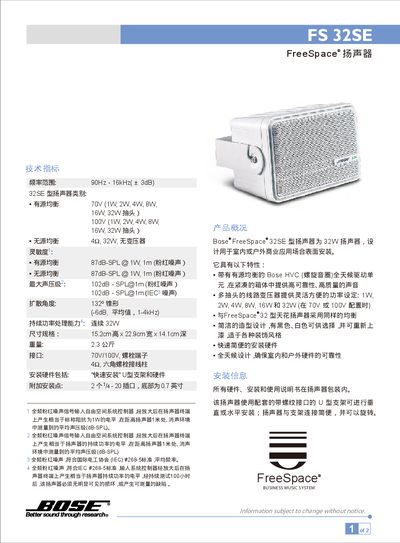

The manual includes dimensions (15.2 cm H × 22.9 cm W × 14.1 cm D), weight (2.3 kg), maximum SPL of 102 dB @ 1 m, and a five‑year limited warranty. Installation hardware such as a quick‑mount U‑bracket is supplied, and wiring diagrams for both 70 V and 100 V configurations are provided. This manual is written in Chinese.
| Frequency Response | 90 Hz – 16 kHz (-3 dB) |
|---|---|
| Maximum SPL | 102 dB SPL @ 1 m |
| Sensitivity (70 V) | 87 dB SPL @ 1 W, 1 m |
| Sensitivity (100 V) | 87 dB SPL @ 1 W, 1 m |
| Power Handling Capacity | 32 W |
| Dimensions (H × W × D) | 15.2 cm × 22.9 cm × 14.1 cm |
| Weight | 2.3 kg |
The loudspeaker covers 90 Hz to 16 kHz with a -3 dB tolerance.
It can reach a maximum sound pressure level of 102 dB SPL measured at 1 m.
The speaker measures 15.2 cm high, 22.9 cm wide and 14.1 cm deep.
All versions of the FreeSpace 32SE are covered by a five‑year limited warranty.
