Bose® FreeSpace® 32 Speaker is a 32W ceiling speaker designed for commercial applications, featuring high reliability, high-quality sound, flexible power settings, and quick and easy installation.
The FreeSpace 32 is a 32 W ceiling‑mount speaker designed for commercial spaces, featuring an active‑equalized driver, multi‑tap transformer for flexible power settings, and UL‑2043 compliance. It can be painted to match décor and includes protective dust and paint covers.

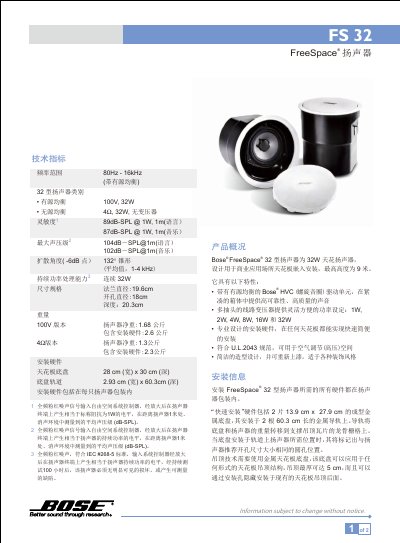

The manual covers product overview, step‑by‑step installation hardware and procedures, technical specifications, UL certification details, and warranty information, with all necessary mounting hardware supplied in the package. This manual is written in Chinese.
| Frequency range | 80 Hz – 16 kHz (with active equalization) |
|---|---|
| Sensitivity (speech) | 89 dB‑SPL @ 1 W, 1 m |
| Maximum SPL (speech) | 104 dB‑SPL @ 1 m |
| Dispersion angle (-6 dB) | 132° |
| Dimensions (flange) | Diameter 19.6 cm, opening 18 cm, depth 20.3 cm |
| Weight (100 V version, net) | 1.68 kg |
All mounting hardware is included; install the metal chassis on the rails, mark the opening size, and secure the speaker to the ceiling grid.
The multi‑tap line transformer offers selectable power levels of 1 W, 2 W, 4 W, 8 W, 16 W and 32 W.
All versions of the Bose FreeSpace 32 speaker are covered by a five‑year limited warranty.
