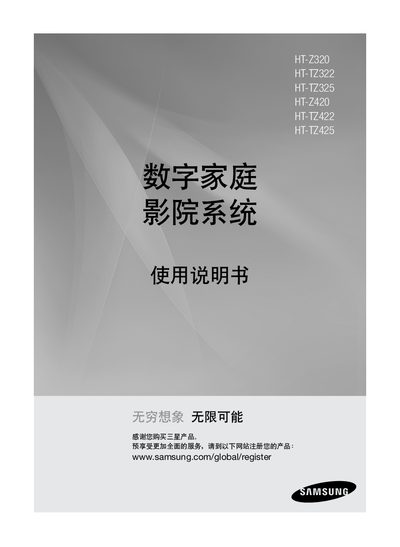

This manual introduces the features and characteristics of the HT-Z320 HT-TZ322 HT-TZ325 HT-Z420 HT-TZ422 HT-TZ425 home theater system, such as supporting multiple disc playback, USB host playback function, Dolby Professional Logic II, DTS, TV screen protection function, power saving function, personalized TV screen display, Anynet+ (HDMI-CEC) function, Bluetooth function, audio and video synchronization function, etc.
The Samsung HT‑Z series family cinema system includes a 5.1‑channel speaker set with front, rear, center and sub‑woofer speakers. It supports multiple disc formats (DVD‑VIDEO, CD, MP3‑CD, WMA‑CD, DMX CD‑RRW, DVD+R/RW), USB host playback, Bluetooth audio, and HDMI‑CEC (Anynet+). The system also offers Dolby Digital, DTS, and various sound‑field processing features.
The manual covers safety precautions, installation guidelines, connection of speakers, wireless receiver, HDMI video, Bluetooth pairing, USB media playback, audio‑video sync adjustment, language settings, and troubleshooting. It also lists the product’s environmental and hazardous‑material information and provides contact details for Samsung service. This manual is written in Chinese.
| Frequency Range | 140 Hz–20 kHz (front/rear/center), 45 Hz–160 Hz (sub‑woofer) |
|---|---|
| Output SPL | 86 dB |
| Input Power | 166 W (front/rear/center), 170 W (sub‑woofer) |
| Maximum Input Power | 332 W (front/rear/center), 340 W (sub‑woofer) |
Visit the registration website listed in the manual: www.samsung.coryglobal/register.
Do not open the chassis, ensure the unit is grounded, keep it away from water, and have repairs performed only by qualified service personnel.
Enable the Bluetooth function and pair your Bluetooth device; no cables are required for playback.
Use the audio delay setting in the menu to match the video timing when the video appears slower than the audio.
