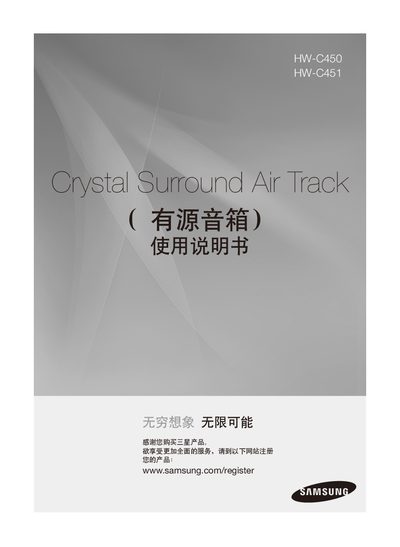

This document introduces the features and characteristics of the Samsung Crystal Surround Air Track (active speaker), including no need for auxiliary amplifiers and speaker wiring, multifunctional remote control, special sound field modes, compatibility with various audio technologies, and wireless subwoofer.
This manual explains the features of the Crystal Surround Air Track active speaker, including its built‑in wireless subwoofer, seven sound‑field modes, and compatibility with Dolby Digital, DTS and SFE. It also describes the multifunction remote that can control Samsung TVs and adjust volume, channels, and menus.
The guide covers safety warnings, installation steps such as wall‑mounting, connection options for optical, analog and USB inputs, software upgrade procedures, and detailed troubleshooting tips for power, audio, and remote‑control issues. This manual is written in Chinese.
| Standby Power Consumption | 0.75 W |
|---|---|
| Main Unit Power Consumption | 45 W |
| Subwoofer Power Consumption | 20 W |
| Main Unit Weight | 2.3 kg |
| Main Unit Dimensions (W×H×D) | 957 x 91.9 x 45.9 mm |
| Operating Temperature Range | +5 °C to 35 °C |
| Operating Humidity Range | 10 % to 75 % |
| Amplifier Output Power (Main Unit) | 80 W per channel, 4 Ω, THD = 10 % at 1 kHz |
| Amplifier Output Power (Subwoofer) | 120 W, 4 Ω, THD = 10 % at 100 Hz |
| Input Sensitivity / Impedance | 450 mV / 20 kΩ |
| Signal‑to‑Noise Ratio (Analog Input) | 65 dB |
| Channel Separation (1 kHz) | 70 dB |
| Frequency Response (Analog Input) | 20 Hz ~ 20 kHz (±3 dB) |
| Frequency Response (Digital Input, 48 kHz PCM) | 20 Hz ~ 20 kHz (±3 dB) |
Insert a USB drive formatted as FAT16 into the USB port on the back of the unit and follow the on‑screen prompts; do not disconnect power during the upgrade.
Make sure the power cable is firmly plugged into a grounded AC outlet and that the power plug is fully inserted; then press the power button.
Press the mute button on the remote; pressing it again restores the previous volume level.
