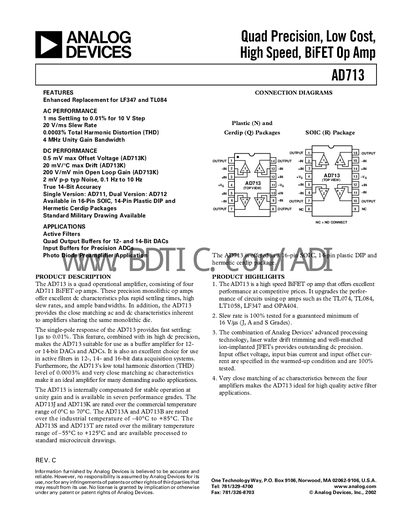

This document provides information on AD713, including product features, performance parameters, and application scenarios
The AD713 quad op‑amp combines four AD711 BiFET amplifiers in a single monolithic die, offering fast settling (1 ms to 0.01 % for a 10 V step), high slew rate (20 V/ms) and low total harmonic distortion (0.0003 %). It is suitable for precision buffering of 12‑ and 14‑bit DACs, active filters and demanding audio applications.
Available in several temperature‑graded versions (commercial, industrial and military) and in 14‑pin DIP, 16‑pin SOIC and hermetic Cerdip packages, the AD713 provides matched AC and DC characteristics across all four amplifiers.
| Unity Gain Bandwidth | 4 MHz |
|---|---|
| Slew Rate | 20 V/ms |
| Total Harmonic Distortion (1 kHz) | 0.0003 % |
| Input Offset Voltage (typical) | 0.5 mV |
| Open‑Loop Gain (minimum) | 200 V/mV |
| Settling Time to 0.01 % (10 V step) | 1 ms |
The AD713 can be powered from 0 V up to +18 V.
Commercial grades (AD713J/K) operate from 0 °C to 70 °C, industrial grades (AD713A/B) from –40 °C to +85 °C, and military grades (AD713S/T) from –55 °C to +125 °C.
The AD713 is offered in 14‑pin plastic DIP, 16‑pin SOIC, and hermetic Cerdip packages.
Typical input noise is 2 µV p‑p from 0.1 Hz to 10 Hz.
