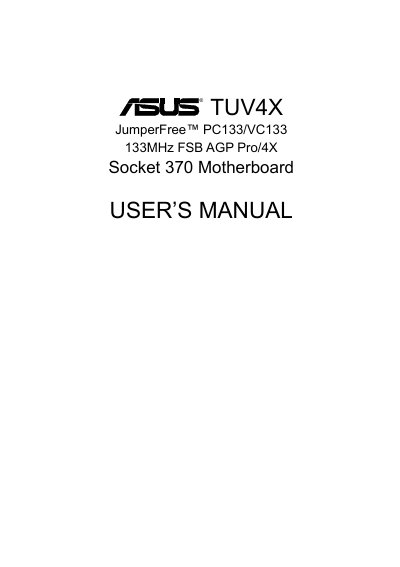

This document is about the ASUS TUV4X JumperFree™ PC133/VC133 133MHz FSB AGP Pro/4X Socket 370 Motherboard user manual, which introduces the features and characteristics of the product.
This manual covers the ASUS TUV4X Socket 370 motherboard, detailing its hardware layout, supported processors, memory options, and expansion slots. It includes step‑by‑step hardware installation, BIOS configuration, and software setup guidance.
Additional sections describe the motherboard’s features such as JumperFree™ over‑clocking, UltraDMA/100 support, AGP Pro slot, Wake‑On‑LAN, and integrated diagnostics with ASUS PC Probe.
| Supported CPUs | Intel Pentium III 133 MHz FSB Tualatin, Intel Pentium III 133/100 MHz FSB Coppermine, Intel Celeron 100/66 MHz FSB Coppermine |
|---|---|
| North Bridge Chipset | VIA VT82C694T |
| South Bridge Chipset | VIA VT82C686B |
| Memory Slots | 4 DIMM sockets, up to 1.5 GB total |
| AGP Slot | AGP Pro, supports 4X/2X cards |
| UltraDMA Support | UltraDMA/100, UltraDMA/66, UltraDMA/33 |
| Wake‑On‑LAN | Supported via WOL connector |
It supports Intel Pentium III 133 MHz FSB Tualatin core, Intel Pentium III 133/100 MHz FSB Coppermine core, and Intel Celeron 100/66 MHz FSB Coppermine core.
The board has four DIMM sockets and can accommodate up to 1.5 GB of memory.
It provides six 32‑bit PCI slots and one Audio Modem Riser (AMR) slot for additional cards.
