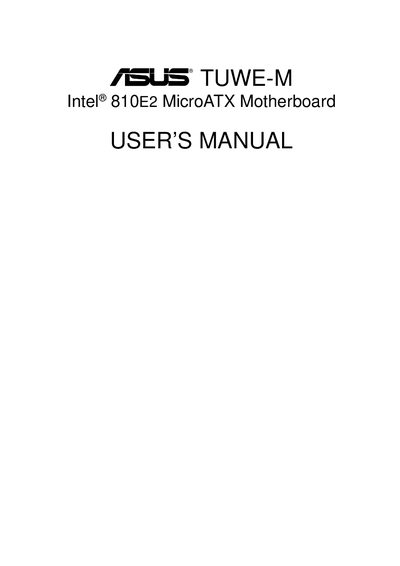

This user manual introduces the functions and usage of ASUS TUWE-M motherboard.
This manual provides step‑by‑step instructions for installing and configuring the ASUS TUWE-M MicroATX motherboard, covering hardware layout, BIOS setup, and bundled software utilities. It also includes a checklist of items shipped with the board and safety notices.
The document details the board’s core specifications such as the Intel 810E2 north bridge, ICH2 south bridge, Socket 370 CPU support, up to 512 MB PC100 SDRAM, multiple PCI and USB ports, and onboard LAN. It guides users through BIOS menus, driver installation, and troubleshooting.
| CPU socket | Socket 370 for Intel PIII processors |
|---|---|
| North Bridge chipset | Intel 810E2 |
| South Bridge chipset | Intel I/O Controller Hub 2 (ICH2) |
| PCI expansion slots | Three 32‑bit PCI slots |
| CNR slot | One Communication and Networking Riser (CNR) slot |
| IDE connectors | Dual‑channel UltraDMA/100/66 IDE connectors (up to four devices) |
| USB ports | Four USB ports (2 rear, 2 midboard) |
| Onboard LAN | Intel 82562ET 10/100 Ethernet controller |
| Power connector | ATX 12 V power connector |
It uses a Socket 370 for Intel PIII processors.
The board supports up to four USB ports, two on the back panel and two midboard.
The Intel 82562ET chipset provides 10/100 Ethernet connectivity.
