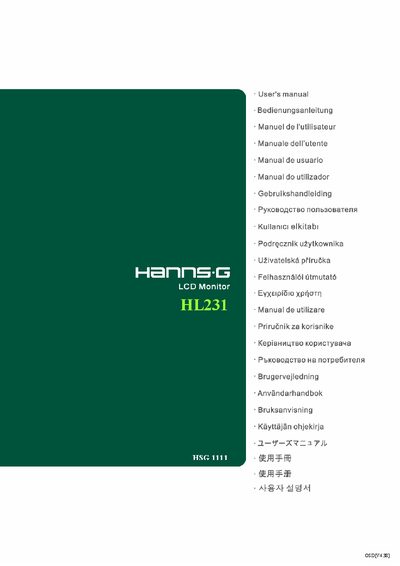

This document is the user manual for HL231 HSG 1111 OSD[V4.38], which explains the precautions before operating the monitor, including FCC Class B RF interference statement and Canadian Interference-Causing Equipment Regulations. In addition, it also introduces the features and characteristics of the product.
This manual covers important safety information, unpacking details, and step‑by‑step installation instructions for the HL231 LCD monitor. It explains how to connect power, video inputs (HDMI, DVI, VGA) and adjust the monitor settings.
The specification section lists the screen size, resolution, power consumption, weight and environmental limits, while the FAQ addresses common issues such as initial screen uniformity and proper grounding. This manual is written in Japanese.
| Screen size | 38.4 cm / 23 inches |
|---|---|
| Pixel pitch | 0.2632 mm (horizontal) × 0.2632 mm (vertical) |
| Resolution | 1920 × 1080 @ 60 Hz |
| Power consumption (typical) | 27 W |
