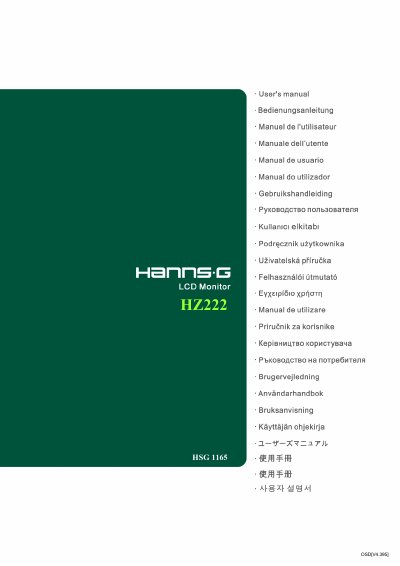

Hanns.G HZ222 LCD Monitor User Manual

This is a manual that introduces the use of the display, including precautions, instructions before use, installation instructions, and power connection

Brand: Hanns.G
Category: Monitor
Document type: User Manual
Language: Chinese
Pages: 22
File format: PDF
File size: 884 KB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: 18C1FAE6A4AB5EE0F9AE5DB9871D4716
PDF: Hanns.G HZ222 LCD Monitor User Manual PDF

About this manual

This manual covers important safety notices, environmental disposal information, and detailed specifications for the Hanns.G HZ222 22‑inch TFT color LCD monitor. It includes guidance on proper installation, power connection, wall‑mounting, and adjustment of viewing angles.

The document also provides troubleshooting tips, FAQ, and a quick‑start guide for immediate use, along with compliance statements for FCC, Canadian, and EU regulations. This manual is written in Chinese.

What's inside

Safety Notices
LCD Display Special Notes
Pre‑Use Instructions
Installation Guide
Power Connection
Wall‑Mounting
Control and Connections
Viewing Angle Adjustment
Operation Instructions
Technical Specifications

Specifications

Display size (diagonal)	56 cm (22")
Pixel pitch	0.282 mm (H) x 0.282 mm (V)
Maximum resolution	1680 x 1050 @ 60 Hz
Dimensions (W×H×D)	508.8 mm × 411.7 mm × 190 mm
Weight	4.8 kg

Frequently asked questions

What should I do if the screen flickers when I first use the monitor?

Turn the monitor off and then turn it back on again to stop the flicker.

Where can I find recycling information for this monitor?

Visit www.hannsg.com for details on proper disposal and recycling of the product.

How do I adjust the viewing angle of the monitor?

Use the adjustment controls described in the manual to tilt the screen to the desired angle.
