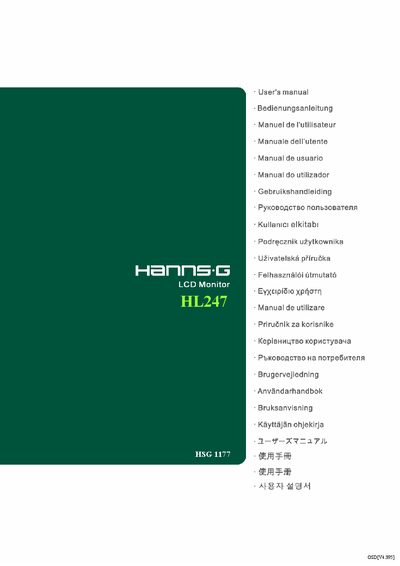

This document is the user manual for HL247 HSG 1177 OSD[V4.395], which describes the features and characteristics of the monitor.
This manual covers all essential information for installing and using the Hanns.G HL247 LCD monitor. It includes safety warnings, environmental disposal guidance, and detailed instructions for mounting, connecting power and video cables, and adjusting display settings.
The document also provides a technical specifications table, troubleshooting tips, and a FAQ section to help users resolve common issues such as screen flicker, voltage compatibility, and proper recycling of the unit. This manual is written in Chinese.
| Screen size | 23.6" diagonal (60 cm) |
|---|---|
| Maximum resolution | 1920 × 1080 @ 60 Hz |
| Power consumption (typical) | 30 W |
| Input connectors | VGA, DVI |
| Weight | 4.2 kg |
| Dimensions (W × H × D) | 559.8 mm × 395.6 mm × 172.7 mm |
Turn the monitor off, then turn it on again to eliminate the initial flicker.
Yes, the monitor supports a wide input voltage range of 100/120 V or 220/240 V AC without user adjustment.
