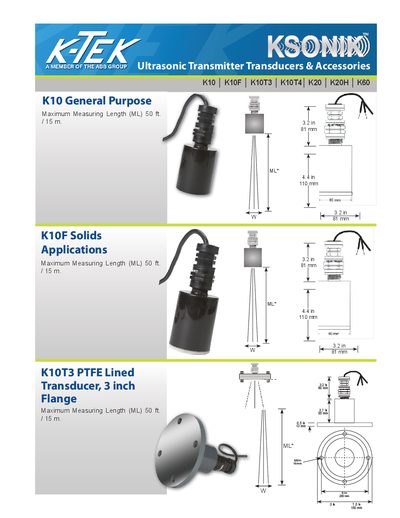

This is a KSONIK sensor product introduction, including K10, K10F, K10T3, K10T4, K20, K20H, K60 and other models, introduces the maximum measuring length, size, installation method and other information of these models.
The K-TEK K10 series includes ultrasonic transducers for general‑purpose, solids, and PTFE‑lined applications. Each model specifies a maximum measuring length, material construction, and IP protection rating suitable for a range of industrial level‑measurement tasks.
Installation guidance covers nozzle selection (45° cut recommended) and mounting requirements, while the data sheet also lists temperature limits, beam body specifications, and optional accessories such as aiming kits and the KSCOPE software for configuration.
| Maximum Measuring Length (K10) | 50 ft / 15 m |
|---|---|
| Maximum Measuring Length (K20) | 100 ft / 30 m |
| Maximum Measuring Length (K60) | 196 ft / 60 m |
| Transducer Body Temperature Range | -4 °F to 176 °F |
| Operating Temperature Range (K10, K10F, K10T3, K10T4) | -20 °C to 80 °C |
| Material (K10T3) | PTFE |
| Recommended Nozzle Type | 45° cut nozzle |
The K10 transducer can measure up to 50 ft (15 m).
The K10T3 transducer is PTFE‑lined.
A 45° cut nozzle is recommended for best results.
They operate from –20 °C to 80 °C.
