This electronic sensor features high accuracy, high reliability and low power consumption, and is suitable for a variety of applications in the industrial automation field.

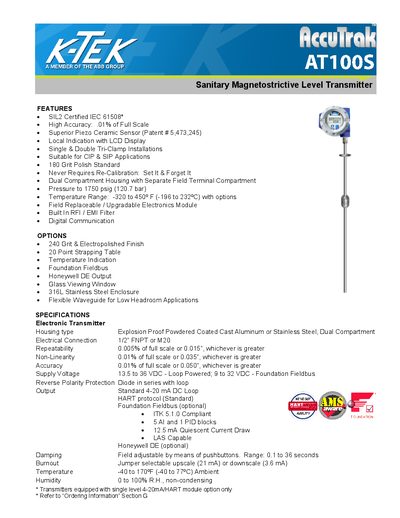

The AT100S is a sanitary magnetostrictive level transmitter designed for high‑accuracy level measurement in CIP and SIP applications. It features a patented piezo‑ceramic sensor, dual‑compartment housing, and a local LCD display.
The manual covers features, optional accessories, detailed specifications, principle of operation, ordering information, and available communication protocols (HART, Foundation Fieldbus, Honeywell DE). It also lists safety approvals, pressure and temperature ratings, and installation guidelines for tri‑clamp connections.
| Accuracy | 0.01% of full scale or 0.050%, whichever is greater |
|---|---|
| Repeatability | 0.005% of full scale or 0.015", whichever is greater |
| Non‑Linearity | 0.01% of full scale or 0.035", whichever is greater |
| Supply Voltage | 13.5‑36 VDC (loop powered) or 9‑32 VDC (Foundation Fieldbus) |
| Output Standard | 4‑20 mA DC Loop |
| Pressure Rating | 1750 psig (120.7 bar) |
| Temperature Range | -320 to 450 °F (-196 to 232 °C) |
| Housing Type | Explosion‑proof powdered coated cast aluminum or stainless steel, dual compartment |
No, the AT100S never requires recalibration; it is a set‑it‑and‑forget‑it device.
The transmitter is rated for up to 1750 psig (120.7 bar).
