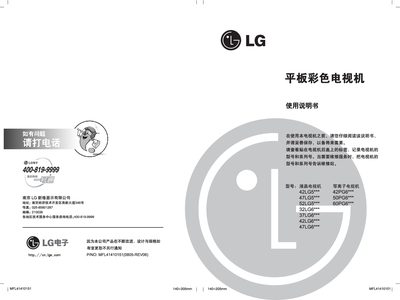

LG 32LG6 Flat Panel TV User Manual

About this manual

This manual covers the installation of the TV, including base mounting and wall‑mount options, and explains how to connect external devices such as HDMI, component video, USB, and RS‑232C control interfaces. Detailed diagrams show the locations of input ports and the steps required for proper wiring.

It also describes the on‑screen menu functions, including picture settings (aspect ratio, cinema mode, TruMotion), audio controls, picture‑in‑picture mode, and sleep timer. Safety notices, troubleshooting tips, and service information are provided for end users and technicians. This manual is written in Chinese.

What's inside

• Control Panel Overview
• Installation and Base Mounting
• External Interface Connections
• HDMI and Component Video Input
• DVD and AV Connections
• Picture Settings
• Audio Settings
• Picture‑in‑Picture Mode
• Cinema Mode (Real Cinema)
• RS‑232C Control Interface

Frequently asked questions

How do I connect an HDMI source to the TV?

Connect the HDMI cable to the HDMI IN port.

How can I use the picture‑in‑picture feature?

Select the picture‑in‑picture mode in the menu.

How do I connect the RS‑232C control interface?

Connect the control cable to the RS‑232C input (control) port.
