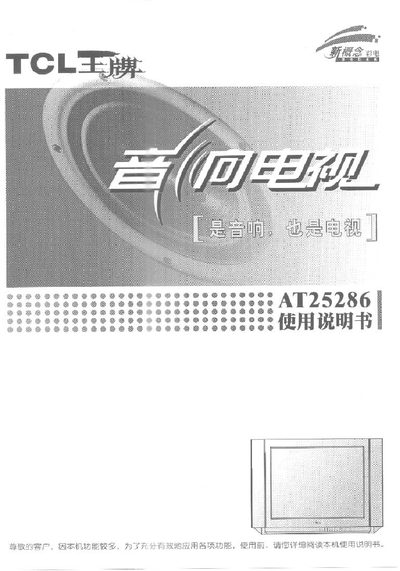

This manual explains how to power on the TV, select input sources, adjust picture and sound settings, and use special features such as the timer, calendar, and radio. It also includes a detailed description of the remote control functions and the front‑panel layout.
Safety warnings, technical specifications, and a troubleshooting guide are provided to help resolve common issues such as no picture, no sound, or remote‑control problems. Contact information for TCL service centers is listed at the end of the document. This manual is written in Chinese.
| Supported Channels | 470 MHz, 81‑57CH to Z1‑38CH |
|---|---|
| Working Voltage | 185 W‑250 W, 50/60 Hz |
| Power Consumption | 100 W |
| Dimensions (mm) | 720 × 600 × 520 |
| Screen Diagonal | 59 cm |
Press the “single‑key search” button on the TV or remote; the TV will start scanning and automatically store found channels.
Check that the TV is powered on, verify the antenna or cable connections, and adjust the antenna direction if needed. If the problem persists, contact a local service center.
Make sure the audio mode is set correctly in the system menu, and check the volume level. If the TV is muted, press the mute button to restore sound.
