The V2 digital soft-starter is a device designed for high voltage and high-risk environments. It undergoes rigorous testing and sealing. It is important to comply with special regulations and electrical rules during installation. The device requires professional technical support.

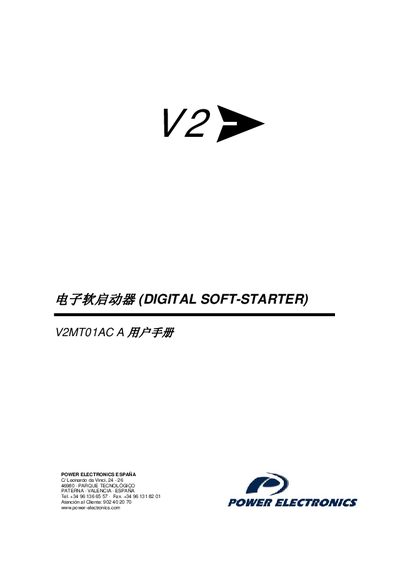

This manual provides safety guidelines, installation instructions and wiring diagrams for the V2 series electronic soft starter. It details environmental requirements, protection levels (IP00 and IP54), and recommended mounting clearances.
Technical data such as maximum ambient temperature, power loss per ampere, and current ratings are presented, along with CE certification information and compliance with European directives. This manual is written in Chinese.
| Maximum ambient/operating temperature | 40 °C (IP00) / 50 °C (IP54) |
|---|---|
| Protection level | IP00 or IP54 |
| Power loss per ampere (full load) | 3 W per A |
| Maximum rated current (example) | 30 A (continuous) |
The V2 soft starter is available with IP00 for forced‑air‑cooled cabinets or IP54 for sealed cabinets.
It dissipates approximately 3 W for each ampere of load current; for a 30 A motor this equals about 135 W.
Maintain at least 30 mm side clearance and 150 mm top‑to‑bottom clearance from other equipment.
No, the IP54 version can operate without forced‑air cooling as long as start‑up frequency is limited to six per hour.
