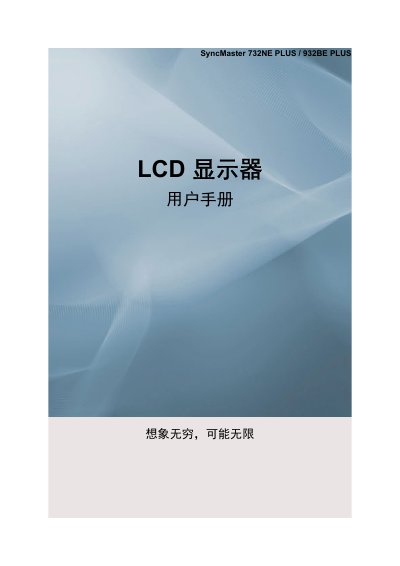

SyncMaster 732NE PLUS / 932BE PLUS LCD Monitor User Manual, this manual introduces the safety instructions, installation instructions and cleaning instructions of the monitor.
This manual begins with safety instructions and installation guidance for the SyncMaster 732NE PLUS and 932BE PLUS LCD monitors. It covers proper handling, grounding, environmental requirements, and precautions to avoid electric shock, fire, or damage during transport and mounting.
The later sections describe operation of the on‑screen menu, PowerSaver energy‑saving features, plug‑and‑play compatibility, and detailed technical specifications such as screen size, resolution, power requirements, and operating temperature ranges. This manual is written in Chinese.
| Screen size (diagonal) | 17" (43 cm) |
|---|---|
| Display area | 337.92 mm × 270.336 mm |
| Dot pitch | 0.264 mm × 0.264 mm |
| Horizontal sync frequency | 30 kHz – 81 kHz |
| Vertical sync frequency | 56 Hz – 75 Hz |
| Color depth | 8‑bit (16.2 M colors) |
| Native resolution | 1280 × 1024 @ 60 Hz |
| Maximum resolution | 1280 × 1024 @ 75 Hz |
| Analog RGB input level | 0.7 Vp‑p ± 5 % |
| Maximum pixel clock | 135 MHz |
| Power supply | AC 100‑240 V ±10 %, 50/60 Hz |
| Operating temperature | 10 °C – 40 °C |
| Storage temperature | -20 °C – 45 °C |
Use a slightly damp soft cloth and the recommended cleaning agent; do not spray water or chemicals directly on the screen.
Install the monitor in a low‑humidity, low‑dust environment, keep it away from flammable sources, and have a qualified professional mount the stand.
PowerSaver is a built‑in power‑management system that puts the monitor into a low‑power mode after a period of inactivity to save energy.
Keep your eyes about 45 cm to 50 cm away from the screen for comfortable viewing.
