This document provides detailed information about the specifications, features, conformity statements, and installation recommendations of the product.

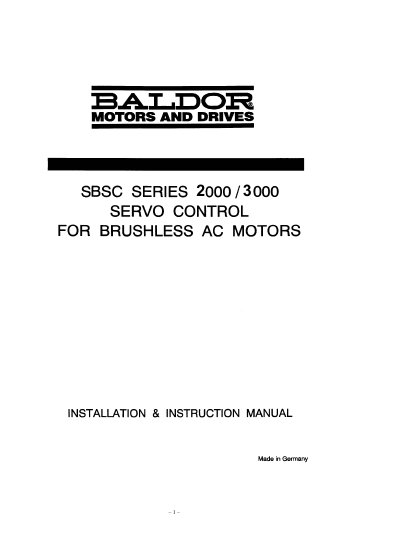

This guide covers the installation of SBSC 2000/3000 servo control amplifiers, including mechanical and electrical mounting, wiring, and EMC considerations. It provides detailed specifications, wiring diagrams, and step‑by‑step system setup procedures.
Key sections include product specifications, power and control wiring, EMC installation instructions, interconnection diagrams, and detailed I/O hardware descriptions such as encoder, resolver and RS232 interfaces.
| Nominal DC‑Bus Voltage | 230 V DC (SBSC2000) |
|---|---|
| Protection Class | IP20 |
| Encoder Resolution | 4096 Counts/rev |
| Opto‑isolated Control Inputs | 3 |
The SBSC amplifiers provide three opto‑isolated control inputs.
Output current versions of 15 A, 25 A, 35 A and 45 A are offered.
