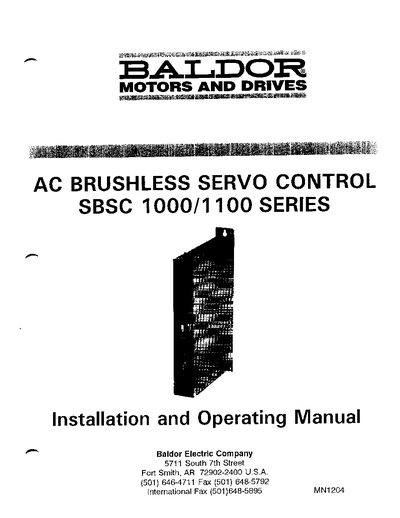

This manual provides step‑by‑step instructions for installing, wiring, and commissioning the SBSC 1000/1100 series servo control. It covers mechanical mounting, power and signal wiring, grounding, and noise suppression, followed by start‑up procedures and tuning adjustments.
Additional sections include troubleshooting tables, detailed specifications, mounting dimensions, factory i‑parameter settings, and schematics for input/output and encoder connections. The guide is intended for personnel familiar with the SBSC series and associated machinery.
| Input Voltage | Single (direct) or three‑phase (with transformer) |
|---|---|
| Output Current Versions | 2 A, 5 A, 10 A, 15 A |
| Maximum Output Power | 6.5 kVA |
| Protection Class | IP20 |
| Analog Input | 1 channel, +10 V, 8‑bit |
| Handwheel Input | 1 encoder channel |
| Serial Interface | RS‑232C |
| Daisy‑Chain Capacity | Up to 16 axes |
Up to 16 SBSC axes can be daisy‑chained together.
The controller is offered in 2 A, 5 A, 10 A, and 15 A output current versions.
Yes, the SBSC 1100 series has an internal power supply; the SBSC 1000 series requires an external supply.
