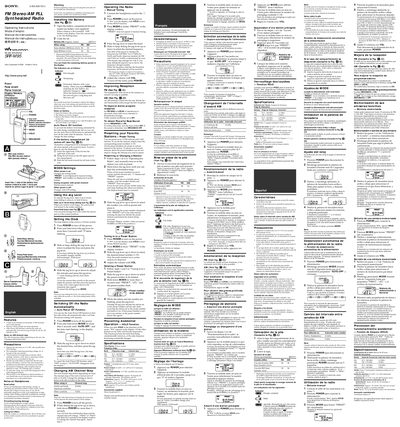

The document is an operating manual for a radio produced by Sony Corporation. This radio can receive FM and AM bands, has 20 preset channels, 15 FM channels and 5 AM channels, can be operated with one hand, and has an automatic shutdown function.
The Sony SRF-M95 is a compact FM/AM radio with a jog lever for one‑hand operation, auto power‑off, and a megabass boost. The manual covers battery installation, clock setting, preset management, and reception tips.
Key features include 20 preset channels (15 FM, 5 AM), a 24‑hour clock, and optional auto power‑off intervals of 30, 60, 90, or 120 minutes. Safety precautions, battery life expectations, and headphone usage guidelines are also provided.
| Frequency range (AM) | 530 – 1710 kHz |
|---|---|
| Power output (headphones) | 2.5 mW + 2.5 mW (10 % THD) |
| Power requirements | 1.5 V DC, one R03 (AAA) battery |
| Dimensions | ≈ 39 × 83.8 × 20.4 mm (W × H × D) |
| Mass | ≈ 57.5 g (incl. battery and headphones) |
| Battery life (FM/AM) | 40‑54 h (FM), 18‑26 h (AM) (approx.) |
| Auto Power Off options | 30 min, 60 min, 90 min, 120 min, or off |
Open the battery compartment lid, insert a new R03 (AAA) battery with correct polarity, then close the lid. The display will flash "0:00" until the clock is set.
Turn the radio off, then while sliding the jog lever, hold POWER for more than 5 seconds. A confirmation beep sounds and the display flashes “10 kHz” or “9 kHz”.
Press POWER to turn off the radio, then press and hold MODE for more than 2 seconds until “AUTO OFF” appears. Slide the jog lever to select 30, 60, 90, or 120 minutes, then press the jog lever to confirm.
