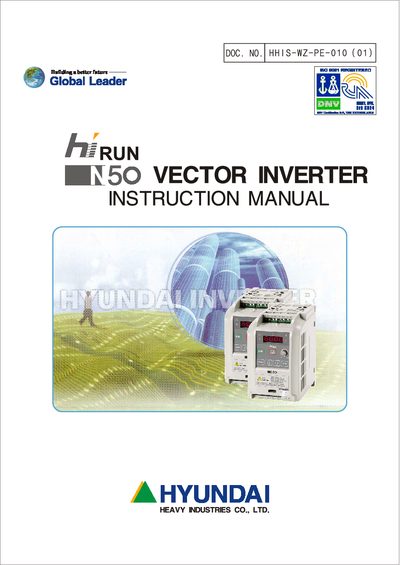

This manual provides detailed instructions for safely installing and operating the Hyundai N50 Vector Inverter. It emphasizes safety symbols, hazard warnings, and proper handling procedures to prevent injury or damage.
The guide includes sections on receiving and checking the unit, general specifications, dimensional diagrams, mounting, wiring, operation, intelligent input terminals, function lists, protective functions, troubleshooting, maintenance, inspection, and RS485 communication.
| Input Voltage | Single‑phase 200 to 230 V 50/60 Hz |
|---|
The manual uses the DANGER and CAUTION symbols to indicate hazardous situations.
You must connect the grounding terminal and ensure the power supply is off before performing any wiring.
The inverter requires a single‑phase input voltage of 200 V to 230 V at 50/60 Hz.
