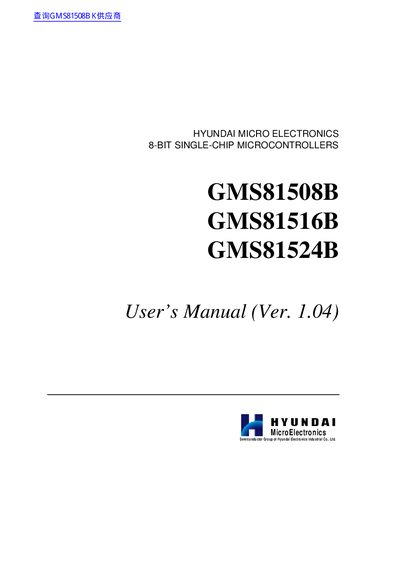

This manual introduces GMS81508B/16B/24B microcontrollers' overview, features, functions, development tools, ordering information etc.
The GMS81508B/16B/24B series are CMOS 8‑bit microcontrollers with on‑chip ROM ranging from 8 K to 24 K bytes, 448 bytes of data RAM and optional OTP memory. They include a variety of peripherals such as timers, an 8‑bit A/D converter, PWM channels, a watchdog timer and a serial communication interface.
This manual covers the device description, block diagram, pin assignment, package options, electrical specifications, memory organization, timer and counter operation, ADC and PWM usage, serial communication details, interrupt handling, power‑down modes, oscillator circuit, reset behavior, OTP programming procedures and a mask order sheet.
| ROM size (GMS81508B) | 8K bytes |
|---|---|
| ROM size (GMS81516B) | 16K bytes |
| ROM size (GMS81524B) | 24K bytes |
| Data RAM size | 448 bytes |
| Operating voltage range | 2.2 V to 5.5 V |
| Operating frequency range | 1 MHz to 10 MHz |
| I/O ports | 52 I/O ports, 4 input ports |
| Interrupt sources | Twelve |
| A/D converter channels | 8‑bit, 8 channels |
| PWM channels | Two 8‑bit PWM channels |
| Watchdog timer | 6‑bit |
| Serial communication interface | 8‑bit |
| Package types | 64‑SDIP, 64‑MQFP, 64‑LQFP |
They operate from 2.2 V up to 5.5 V.
The device provides 52 I/O ports plus 4 dedicated input ports.
The microcontroller includes an eight‑channel 8‑bit A/D converter.
