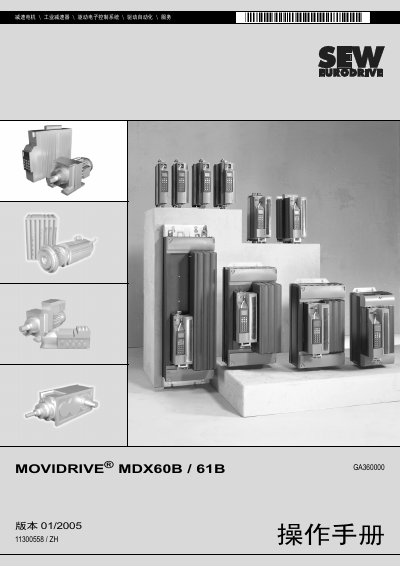

This document is the operation manual for MOVIDRIVE® MDX60B/61B speed reducer. It provides information on installation, debugging, operation, and maintenance of the product.
This Service Manual covers the complete lifecycle of the SEW MOVIDRIVE MDX60B/61B inverter, including safety guidelines, installation steps, wiring diagrams, debugging procedures, and detailed technical specifications. It is intended for qualified technicians and engineers who install, commission, and maintain the drive.
Key sections include Safety Instructions, System Description, Installation, Debugging with the DBG60B panel, Operation & Maintenance, Technical Data and Dimensions, and a Change Index for revisions. The document also lists optional modules and their connection details. This manual is written in Chinese.
| Input voltage | 200 ~ 230 VAc |
|---|---|
| Output voltage range | 380 ~ 500 VAc |
| Recommended motor power | 1.1 kW |
| Connection type | 3‑phase |
The manual requires strict compliance with all safety and warning instructions, including disconnecting power, avoiding explosive or hazardous environments, and ensuring proper grounding and over‑current protection.
External encoders are connected according to the wiring diagram provided in section 4.18, titled “外部编码器的连接”.
Debugging is carried out using the DBG60B operation panel as described in section 5.3 “使用DBG60B 操作面板进行调试”.
