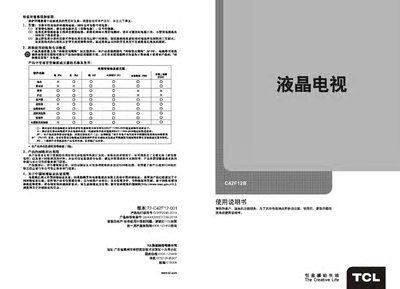

This manual covers safety warnings, environmental considerations, and proper disposal for the TCL C42F12B liquid‑crystal television. It also lists the technical specifications, connection diagrams, and remote‑control functions.
Detailed instructions explain basic operation, picture and sound settings, USB media playback, parental‑control limits, and common fault diagnosis, helping users get the most out of their TV while complying with environmental standards. This manual is written in Chinese.
| Audio output power | 8W + 8W (left + right) |
|---|---|
| Rated power consumption | 165 W |
| Dimensions (W×H×D) | 1004.5 mm × 650 mm × 85 mm |
| Weight | ≈147 kg |
| Operating voltage | 220 V / 50 Hz |
| Operating temperature range | 20 °C – 80 °C |
| Storage temperature range | 10 °C – 90 °C |
Press the power switch on the TV or, if the model has no power button, unplug the power cord; you can also press the remote’s standby key to enter standby mode.
Enter the menu, select the Backlight setting, and use the left/right keys to increase or decrease the backlight level.
Use the “Limit Watch” function in the menu, enter a password, then set the allowed viewing time with the left/right keys.
