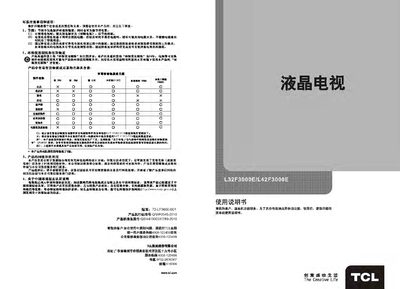

This manual provides safety warnings, environmental guidelines, and instructions for installing and using the TCL L32F3000E/L42F3000E LCD TV. It includes details on power connections, remote control operation, menu navigation, and multimedia features.
Technical specifications, troubleshooting tips, and a FAQ section for common issues such as green download mode, USB storage requirements, and video format compatibility are also included. This manual is written in Chinese.
| Working voltage | 220V‑50Hz |
|---|---|
| Rated power consumption | 70W (L32F3000E) / 130W (L42F3000E) |
| Audio output power | 6W+6W (L32F3000E) / 38W+8W (L42F3000E) |
| Screen diagonal | ≈80 cm (L32F3000E) / ≈107 cm (L42F3000E) |
| Dimensions (W×H×D) | 763 × 486 × 44 mm (L32F3000E) / 997 × 619 × 55 mm (L42F3000E) |
| Weight | ≈8 kg (L32F3000E) / ≈115 kg (L42F3000E) |
The TV screen is turned off, but the download module continues to work.
A USB drive with at least 1 GB of free space is needed.
The video format of the downloaded movie conflicts with the TV’s supported formats.
If an error occurs during compression, storage, or download, playback will stop automatically.
