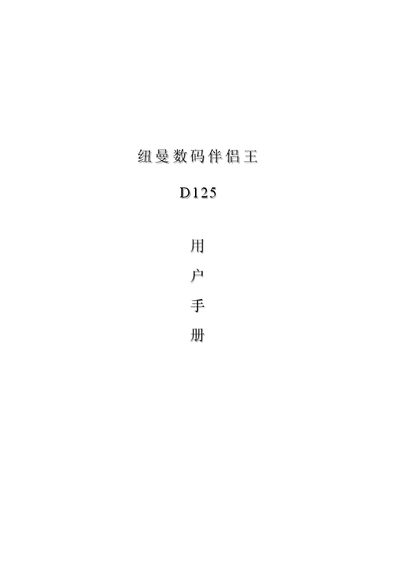

This document is the user manual for Newman digital companion products, which introduces the methods, techniques, and precautions for using the products.
This manual introduces the Newman D125 digital companion, a portable storage device with an internal hard‑disk, USB 2.0 interface and support for multiple memory cards. System requirements include a PC with a Pentium 400 MHz CPU, 64 MB RAM and Windows 98/ME/2000/XP, Windows 2000/XP, Mac OS 8.9+ or Linux 2.4+.
The guide covers functional keys, driver installation for various operating systems, how to connect and safely disconnect the device, copying data from memory cards to the internal drive, battery charging procedures, and detailed explanations of error messages and codes. This manual is written in Chinese.
| Dimensions | 124 mm × 73 mm × 25 mm |
|---|---|
| Internal hard‑disk capacity | 206 – 1006 MB |
| Battery (internal) | 3.7 V 1200 mAh |
| External power adapter | 100 – 240 V |
| USB interface | USB 2.0 |
| Download speed | 5.8 MB/s |
| Supported memory cards | CF, SD, MMC, Memory Stick, etc. |
| Storage temperature range | -40 °C ~ 60 °C |
| Operating temperature range | 0 °C ~ 60 °C |
| Relative humidity | ≤ 90 % |
Run the SETUP.EXE file located in the CD’s Driver\数码伴侣王\纽曼数码伴侣王 D125 folder and follow the prompts.
Stop all read/write operations, close all Windows windows, then either turn off the device power or unplug the USB cable.
Charge the new battery for at least 7 hours using the supplied AC adapter, but do not exceed 20 hours.
