Newman audio and video King M925 MP4 player user manual introduces the features and characteristics of the product, including support for MP3, WMA audio playback, 2.5-inch TFT true color screen, exquisite appearance design, comfortable hand feeling, movie playback function, ultra-long text recording, support SD/MMC card, built-in high-definition microphone, handheld games, electronic calendar, time display, support JPEG image format, firmware upgrade function, support MP3 lyrics synchronization display, timing shutdown, free drive flash disk function

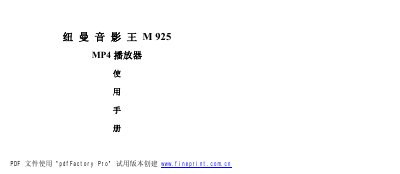

This manual introduces the Newman M925 portable MP4 player, covering its features, button layout, and basic operation procedures such as charging, power on/off, and file management. It also includes safety precautions and warranty information.
The document contains detailed specifications of the device, including screen size, supported media formats, memory options, battery capacity, and audio output power, as well as troubleshooting FAQs for common issues like low sound volume and short standby time. This manual is written in Chinese.
| Dimensions | 91mm×61mm×15mm |
|---|---|
| Display | 2.5-inch 260,000‑color TFT LCD |
| Music formats | MP3, WMA |
| Video format | ASF (MPEG‑4) |
| Image format | JPEG |
| Recording format | WAV (8 kHz) |
| Memory options | 256 MB / 512 MB / 1 GB Flash |
| Earphone output power | L 5 mW + R 5 mW |
| Frequency response | 20 Hz – 20 kHz |
| Signal‑to‑noise ratio | ≥85 dB |
| USB interface | USB 1.1 |
| Battery | 960 mAh Li‑ion |
| Operating temperature | 0 °C – 40 °C |
