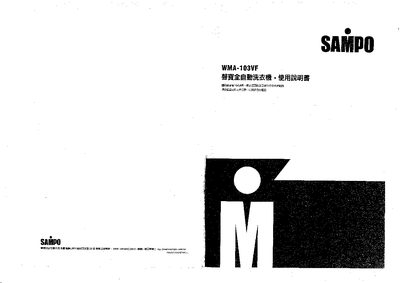

This manual covers the proper installation of the Sampo WMA-103VF, including water‑inlet and drain‑pipe connections, and provides detailed operating instructions for various wash cycles such as standard, intensive, quick, and delicate. Safety precautions, maintenance tips, and fault‑diagnosis procedures are also included.
Technical specifications such as power consumption, dimensions, and load capacity are listed at the end of the document, helping users understand the machine’s requirements and capabilities. This manual is written in Chinese.
| Voltage / Frequency | 110 V / 60 Hz |
|---|---|
| Power Consumption | 450 W |
| Water Pressure | 0.03 – 0.8 MPa |
| Weight | 48 kg |
| Dimensions (W × D × H) | 606 × 620 × 865 mm |
| Maximum Load Capacity | 10 kg |
| Standard Water Consumption | 198 L per cycle |
| Water Temperature Range | 5 °C – 35 °C |
The machine operates on 110 V at 60 Hz and consumes 450 W of power.
The maximum load capacity is 10 kg of laundry.
Refer to the “異常状況時虛理方法” section for troubleshooting steps, such as checking water supply, drain hose, and power connections.
