This document describes the features and characteristics of the XQB52-FX and XQB50-FX washing machines, including the production of concentrated detergent, high-concentration quick-dissolving box, and thorough penetration of stains.

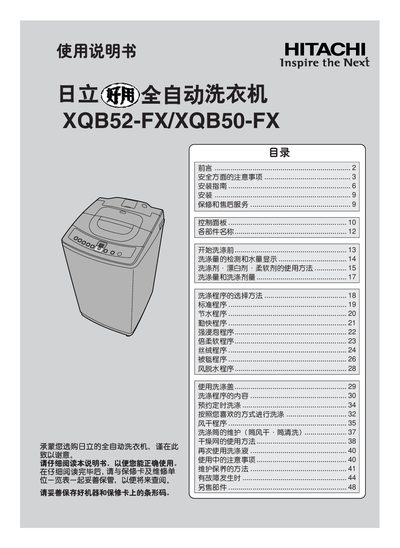

This manual covers all aspects of using the Hitachi XQB52-FX and XQB50-FX fully‑automatic washing machines. It begins with safety precautions, explains the installation process, and describes the control panel and each component.
Detailed sections guide users through selecting washing programs, using the nano‑titanium deodorizing filter, scheduling washes, and performing routine maintenance. Spare‑part information and warranty details are provided at the end. This manual is written in Chinese.
| Standard wash capacity | 5.2 kg (XQB52-FX) / 5.0 kg (XQB50-FX) |
|---|---|
| Drying capacity | 1.5 kg |
| Rated power (wash / spin) | 380 W wash, 300 W spin |
| Weight | ≈29 kg |
| Power supply | 220 V ~ 50 Hz |
| Water pressure range | 0.03 MPa ~ 0.8 MPa |
| Noise level (wash / spin) | 59 dB(A) wash, 68 dB(A) spin |
| Standard water consumption per cycle | 50 L |
The warning symbol indicates that ignoring it may cause death or serious injury.
Check and re‑tighten the inlet hose connection nut regularly to prevent leaks.
The drying capacity can reach up to 1.5 kg of laundry.
