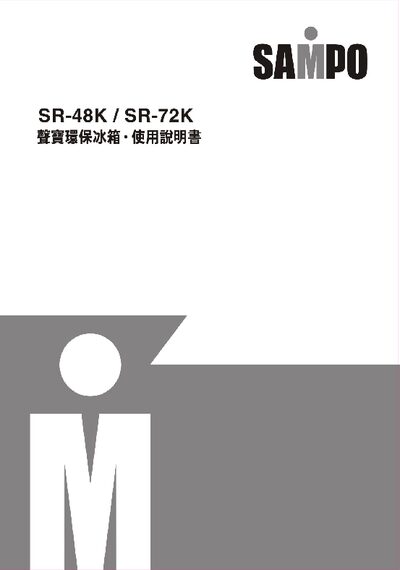

This manual explains how to install, start, and operate the Sampo SR-48K and SR-72K household refrigerators. It covers the basic functions of the temperature‑control knob, ice‑making tray, and the proper way to plug the unit into a 110 V/60 Hz outlet.
Key sections include installation guidelines, step‑by‑step usage instructions, defrost procedures, regular maintenance, safety precautions, and a troubleshooting guide for common problems such as insufficient cooling or noise. This manual is written in Chinese.
| Model | SR-48K / SR-72K |
|---|---|
| Capacity | 48 L (SR-48K) / 72 L (SR-72K) |
| Height | 512 mm (SR-48K) / 773 mm (SR-72K) |
| Width | 490 mm (SR-48K) / 414 mm (SR-72K) |
| Depth | 512 mm (SR-48K) / 522 mm (SR-72K) |
| Weight | 18 kg (SR-48K) / 20 kg (SR-72K) |
| Power Supply | AC 110 V / 60 Hz |
When frost reaches about 7 mm, turn the temperature knob to OFF to start defrosting, then empty the drip tray and return the knob to its previous setting; do not use tools to speed up defrosting.
Use a dedicated 110 V, 60 Hz wall outlet; do not share the plug with lamps, power strips, or use a 220 V source.
Wipe the interior and door with a soft damp cloth, use a neutral detergent for tougher stains, then dry with a clean cloth; avoid abrasive cleaners and direct water spraying.
