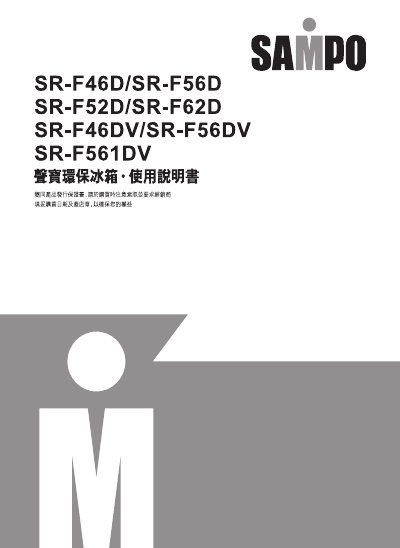

This manual begins with safety precautions and installation instructions, including grounding requirements, placement on level surfaces, and proper power connections. It also describes the functions of each compartment, accessory assembly, and how to adjust temperature settings.
Further sections cover normal operation, cleaning, maintenance, troubleshooting of common faults, and detailed technical specifications such as voltage, power consumption, internal volume, and dimensions. This manual is written in Chinese.
| Rated Voltage (V) | 110 |
|---|---|
| Rated Frequency (Hz) | 60 |
| Motor Rated Power (W) | 120 |
| Heater Rated Power (W) | 130 |
| Internal Volume (L) | 455 |
| Freezer Power Consumption (kWh/month) | 44 |
| Energy Consumption (kWh/month) | 12.5 |
| Product Weight (kg) | 82 |
| External Dimensions (mm) | 674 x 1795 x 785 |
Connect the grounding wire to the dedicated grounding point on the back left side of the unit; do not connect it to water pipes, gas pipes, telephone lines, or lightning rods.
Use a dedicated socket rated at 110 V and at least 10 A; do not use extension cords.
