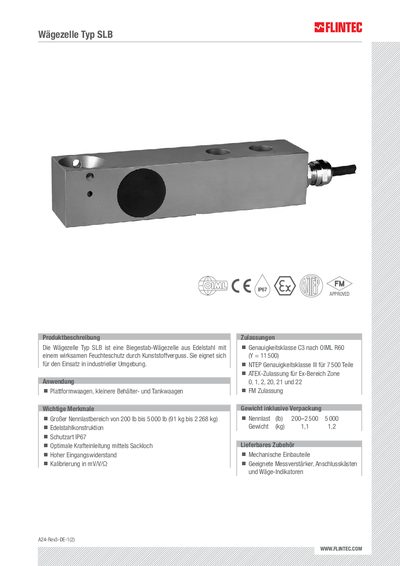

The SLB type is a stainless steel bending beam load cell suitable for industrial environments, with effective moisture protection through plastic encapsulation. Its important features include: large nominal load range, stainless steel construction, IP67 protection rating, optimal force introduction through Sackloch, high input resistance, and calibration in mV/V/Ω.
The FLINTEC SLB weighing cell is a stainless‑steel (17‑4 PH) load cell designed for industrial weighing applications. It features an IP67 protection rating, a 4‑wire shielded AWG‑24 cable with a polyurethane jacket, and is suitable for use in harsh environments.
The document provides detailed technical specifications such as accuracy class C3 (OIML R60), temperature coefficients, electrical resistances, and recommended mounting torque values. It also lists mechanical dimensions and cable information for proper installation. This manual is written in German.
| Accuracy class (OIML R60) | C3 |
|---|---|
| Maximum number of division values | 3000 |
| Temperature coefficient of zero point | 0.0400 %/°C |
| Temperature coefficient of span | 0.0200 %/°C |
| Hysteresis | 0.0400 % |
| Creep error (30 min) | 0.0600 % |
| Input resistance | 1100 Ω ±50 |
| Output resistance | 1000 Ω ±2 |
| Insulation resistance (100 V) | 5000 MΩ |
| Nominal temperature range | -10 °C to +40 °C |
| Operating temperature range | -20 °C to +65 °C (ATEX -20 °C to +60 °C) |
| Material | Stainless steel 17‑4 PH (1.4548) |
| Protection class | IP67 |
| Mounting torque (200‑2500 lb) | 90 Nm |
| Mounting torque (5000 lb) | 120 Nm |
It meets accuracy class C3 according to OIML R60.
The device has an IP67 protection rating.
Nominal range is –10 °C to +40 °C, and operating range is –20 °C to +65 °C (ATEX –20 °C to +60 °C).
