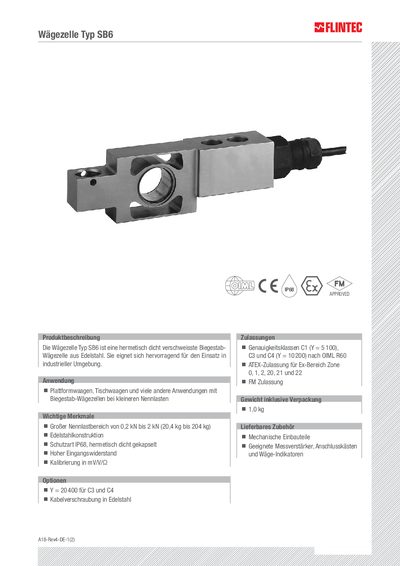

This document describes the features and characteristics of the SB6 IP68 approved Wägezelle product. The product is a hermetically sealed stainless steel bending bar load cell suitable for industrial environments. It features a large nominal load range, high protection class, high input resistance, and optional accessories. It is suitable for platform scales, table scales, and other applications.
This document provides the technical data for the FLINTEC SB6 weighing cell, a 4‑wire, shielded load cell intended for industrial weighing applications. It lists the nominal loads, accuracy classes, electrical characteristics and environmental limits.
Key specifications include nominal loads of 1000 N, 3000 N and 4000 N, OIML R60 accuracy classes C1/C3/C4, temperature coefficients for zero point and span, input/output resistance, insulation resistance, stainless‑steel construction, IP68/IP69K protection and a 3 m poly‑urethane cable with AWG 24 conductors. This manual is written in German.
| Nominal Load | 1000 N / 3000 N / 4000 N |
|---|---|
| Accuracy Class (OIML R60) | C1, C3, C4 |
| Zero‑point Temperature Coefficient (TCo) | 0.0400 %/°C, 0.0275 %/°C, 0.0137 %/°C |
| Span Temperature Coefficient (TCRo) | 0.0200 %/°C, 0.0160 %/°C, 0.0100 %/°C, 0.0080 %/°C |
| Input Resistance | 1100 Ω ± 50 Ω |
| Output Resistance | 1000 Ω ± 2 Ω |
| Insulation Resistance (100 V DC) | 5 000 MΩ |
| Nominal Temperature Range | -10 °C to +40 °C |
| Operating Temperature Range | -40 °C to +80 °C (ATEX -40 °C to +60 °C) |
| Material | Stainless steel 17‑4 PH (1.4548) |
| Protection Rating | IP68 (up to 2 m water depth) / IP69K |
| Mounting Screws | M8 8.8, torque 25 Nm |
The SB6 is offered with nominal loads of 1000 N, 3000 N and 4000 N.
It complies with OIML R60 accuracy classes C1, C3 and C4.
The cell is rated IP68 (up to 2 m water depth) and also meets IP69K requirements.
