The 8523 model tension-compression load cells use three-point support for easy installation and high accuracy measurement.

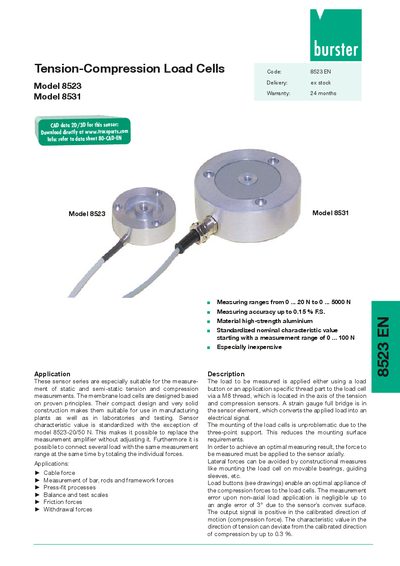

The Burster 8523 and 8531 series are tension‑compression load cells designed for static and semi‑static force measurement in manufacturing plants, laboratories and testing equipment. They feature a compact, robust aluminium construction with a three‑point mounting system and a full‑bridge strain‑gauge sensor that converts load into an electrical signal.
The datasheet provides detailed technical data, including measuring ranges from 0 N up to 5000 N, accuracy up to 0.15 % of full scale, protection classes IP52/IP64, and operating temperature ranges from –30 °C to +80 °C. Accessories such as load buttons, mating connectors and pull plates are also listed.
| Measuring range | 0 N … 5000 N (depending on model) |
|---|---|
| Measuring accuracy | up to 0.15 % FS |
| Material | high‑strength aluminium |
| Protection class | IP52 / IP64 |
| Operating temperature | -30 °C … +80 °C |
| Excitation voltage | max. 5 VDC or AC (10 VDC for larger ranges) |
| Bridge resistance | foil strain gauges (full bridge) |
The measuring accuracy is up to 0.15 % of full scale.
They are made of high‑strength aluminium.
The load cells meet protection classes IP52 and IP64.
The cells operate from –30 °C to +80 °C.
