burster 8523 type is used to measure static and quasi-static tensile or pressure forces.

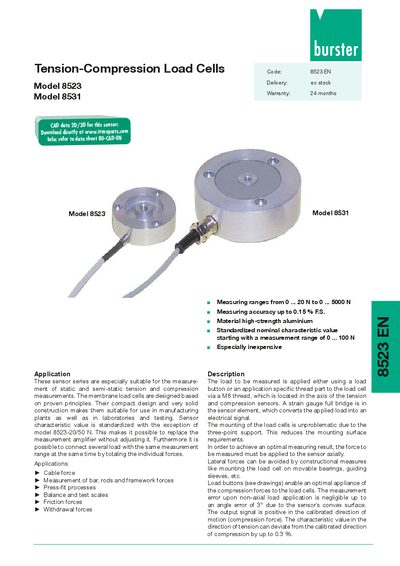

The Burster 8523 and 8531 series are tension‑compression load cells designed for static and semi‑static force measurement in manufacturing, laboratory and testing environments. They feature a compact aluminium construction, three‑point mounting, and a full‑bridge strain‑gauge element that converts load into an electrical signal.
The document provides detailed technical data such as measurement ranges, accuracy, electrical and mechanical specifications, environmental limits, wiring colour codes, and accessory options. It also includes ordering information and references to CAD drawings that can be downloaded from the Burster website or TraceParts.
| Measuring range | 0 … 20 N to 0 … 5000 N |
|---|---|
| Measuring accuracy | up to 0.15 % FS |
| Material | high‑strength aluminium |
| Protection class | IP52 / IP64 |
| Excitation voltage | max 5 VDC or AC (10 VDC/AC for larger ranges) |
| Operating temperature | -30 °C … +80 °C |
| Bridge resistance | foil strain gauges |
| Wiring colour code | white, brown, yellow, green |
| Mounting torque | strength class 12.9 |
The 8523 series is offered in ranges from 0 … 20 N up to 0 … 5000 N, with specific models such as 8523‑20, 8523‑50, 8523‑100, 8523‑200 and 8523‑500.
The 8531 series provides a measuring accuracy of up to 0.15 % of full scale.
The 8523 model is rated IP52 and the 8531 model IP64 according to EN 60529.
