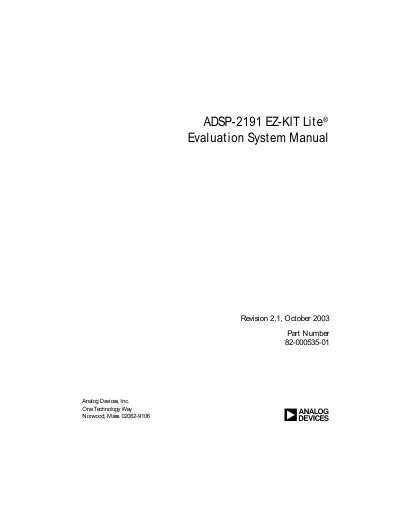

ADSP-2191 EZ-KIT Lite Evaluation System Manual
This manual is intended for engineers and developers who have purchased the ADSP-2191 EZ‑KIT Lite evaluation system. It guides users through installing the VisualDSP++ development environment, configuring the board hardware, and running custom code on the ADSP-2191 DSP.
The document covers getting started, detailed hardware reference, interface descriptions (audio, telephony, JTAG, external memory, etc.), power and mechanical specifications, a bill of materials, and an index of topics. It also includes regulatory compliance information and warranty details.
| Input Voltage | 90–264 V AC |
|---|---|
| DC Output Voltage | 7.5 V DC ±5% |
| Maximum Power Consumption | 15 W |
| Operating Temperature Range | 0 to +40 °C |
The ADSP‑2191 processor runs at a default core clock speed of 160 MHz.
