The ADSP2192-12 EZ-KIT LITE is a digital signal processing evaluation system produced by Analog Devices. The system offers high accuracy and reliability, making it suitable for various signal processing applications.

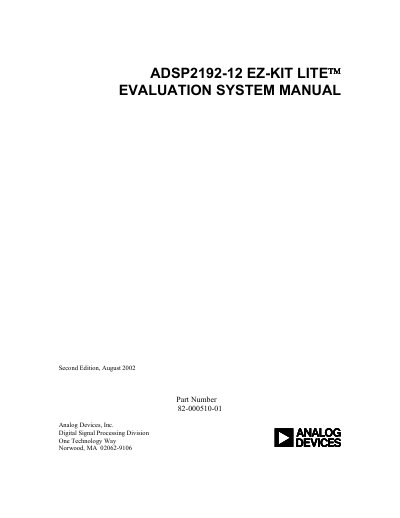

The ADSP2192-12 EZ-KIT Lite Evaluation Kit Manual guides users through installing the hardware and software, explains the board architecture, and describes how to develop and debug applications using VisualDSP++.
The document includes sections on getting started, software usage, hardware details, jumper and switch settings, a bill of materials, and schematics, as well as regulatory compliance and warranty information.
| DSP core speed | 33 MHz |
|---|---|
| Audio codec | AD1885 AC’97 SoundPort |
| PCI interface | PCI version 2.2 compliant |
| USB interface | USB version 1.1 compliant |
| Line‑In / Mic‑In connector | 1/8" stereo jack, jumper selectable |
