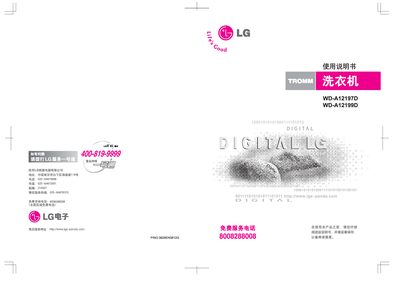

This manual provides safety precautions, installation guidelines, and operating instructions for the LG WD‑A12197D front‑load washing machine. It covers key functions such as wash programs, steam cleaning, child lock, and continuous wash‑dry cycles, as well as troubleshooting and fault diagnosis.
The document also includes technical specifications, wiring diagrams, and warranty information, helping users set up the machine correctly, maintain it, and obtain service when needed. This manual is written in Chinese.
| Power Supply | 220V, 50Hz |
|---|---|
| Dimensions | 600 mm × 550 mm × 850 mm |
| Weight | 64 kg |
| Maximum Wash Capacity | 7 kg |
| Maximum Dry Capacity | 3.5 kg |
| Wash Power Consumption | 17DW |
| Heating Power Consumption | 2000 W |
| Drying Power Consumption | 1350 W |
| Standard Water Pressure | 30 kPa – 1000 kPa |
| Noise Level (Wash) | 54 dB |
Connect the hose to the water tap using the supplied connector, tighten the four screws until the gap is less than 3 mm, and check for leaks by opening the tap.
The inlet water pressure should be between 30 kPa and 1000 kPa.
Use the supplied wrench to loosen and remove the four transport bolts that secure the machine during shipping.
The whole machine is covered for one year, the electronic board for three years, and the motor for ten years.
