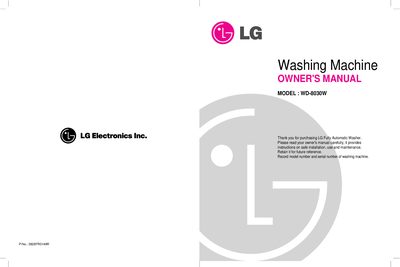

This document is the LG WD-8030W washing machine user manual, which introduces the features and characteristics of the washing machine and the method of use.
The Owner's Manual for the LG WD-8030W washing machine guides users through safe installation, proper use, and routine maintenance. It includes safety warnings, wiring requirements, and leveling instructions to ensure reliable operation.
The guide details all wash programmes, button functions, child‑lock operation, detergent dosing, and troubleshooting steps. It also lists the machine’s technical specifications such as power consumption, capacity, and water‑pressure limits.
| Power supply | 220‑240V/50Hz |
|---|---|
| Dimensions (W×D×H) | 600 mm × 600 mm × 850 mm |
| Weight | 70 kg |
| Wash capacity | 7.0 kg |
| Cold‑only power | 190 W |
| Heating power | 2200 W |
| Wash speed | 50 rpm |
| Spin speed | 800 / 500 rpm |
| Water consumption | 84 L (12 L/kg) |
| Permissible water pressure | 0.3‑10 kgf/cm² (30‑1000 kPa) |
For a one‑touch type hose, untighten the upper connector screw, push the upper connector up until the rubber packing contacts the faucet, tighten the screws, then connect the water‑supply hose to the middle connector and push the plate down.
Place the washer on a flat floor, adjust the leveling legs until the unit is stable, and verify by shaking the machine; keep the transit bolts and spanner for future adjustments.
