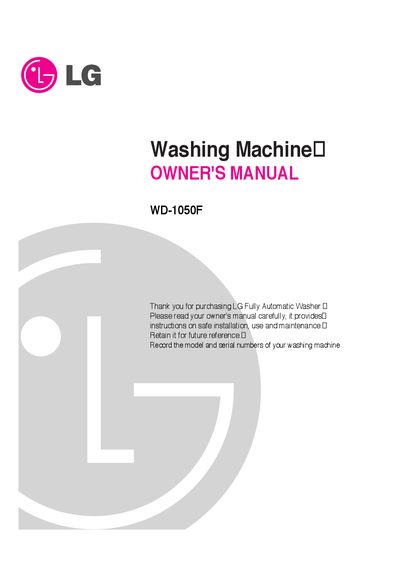

This document is the owner's manual for LG Fully Automatic Washer. It introduces the features of the product, such as wrinkle protection, temperature selection, low noise speed control system, child lock, delayed finish and auto restart.
This manual covers safe installation, proper use, and routine maintenance for the LG WD-1050F fully automatic front‑loading washer. It includes product features, specifications, and step‑by‑step guidance for preparing laundry, adding detergent, selecting wash programs, and troubleshooting common issues.
Detailed sections explain how to level the machine, connect water and power, operate the control panel, use delayed start, Eco/Rapid modes, and perform regular maintenance such as cleaning the drain pump filter and removing transit bolts.
| Power supply | 220‑240V, 50Hz |
|---|---|
| Dimensions (W×D×H) | 600 mm × 600 mm × 850 mm |
| Weight | 67 kg |
| Wash capacity | 7.0 kg |
| Heating power | 2200 W |
| Spin speed | 400/600/800/1000 rpm |
| Water consumption | 67 L (9.6 L/kg) |
| Permissible water pressure | 0.3‑10 kgf (30‑1000 kPa) |
| Washing container volume | 60 L |
The washer provides five wash programs that can be set depending on the type of laundry.
The maximum spin speed is 1000 rpm.
Locate the four transit bolts, unscrew them with the supplied spanner, and remove them before operating the washer.
Connect the washer to a 220‑240 V, 50 Hz power source.
