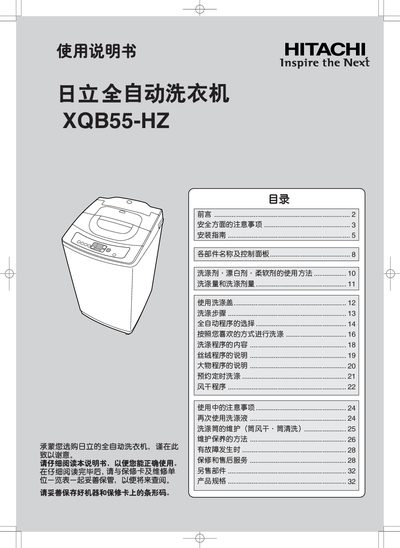

This document introduces the installation guide, usage methods, program selection, and maintenance methods of the XQB55-HZ washing machine.
This manual begins with safety precautions, highlighting warnings about grounding, child safety, and proper handling of electrical components. It then guides the installer through site preparation, leveling, hose connections, and securing the machine.
Subsequent sections describe each control panel function, detergent usage, wash program selection (including silk, heavy, and air‑dry cycles), scheduling, and detailed maintenance tips. The final part lists product specifications, warranty information, and optional spare parts. This manual is written in Chinese.
| Standard wash capacity | 5.5 kg |
|---|---|
| Dimensions (W×D×H) | 539 mm × 530 mm × 965 mm |
| Wash noise level | 62 dB(A) |
| Spin noise level | 68 dB(A) |
| Wash power consumption | 380 W |
| Spin power consumption | 300 W |
| Energy efficiency class | 2 |
| Standard water consumption per cycle | 55 L |
| Energy consumption per cycle | 0.093 kWh |
Attach the inlet hose to the machine’s water inlet, tighten the connecting nut securely, and use the supplied hose and quick‑connect fittings. Verify that the hose is not loose before operation.
The standard wash capacity is 5.5 kg of laundry per cycle.
