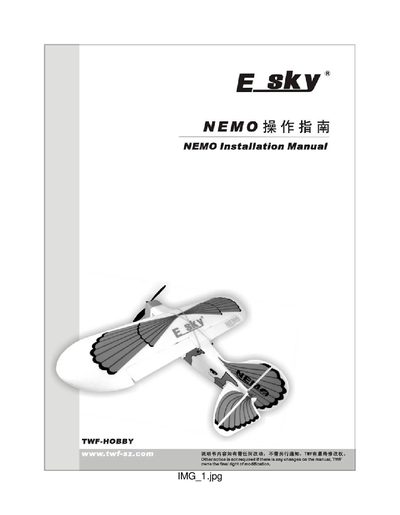

This manual provides step‑by‑step installation guidance, connection diagrams, and safety notices for the Esky NEMO 38 model airplane. It covers basic parameters, electronic part connections, and pre‑flight inspection procedures.
The document also includes an exploded view of the aircraft, recommended control stick operations, and troubleshooting tips such as correcting left‑leaning flight and aileron shake.
| Wing area | 17.4 dm² |
|---|---|
| Wing span | 870 mm |
| Length | 528 mm |
| Propeller size | 9070 |
| Motor | 370 s |
| Battery | 9.6 V Ni‑MH 650 mAh |
| Servo weight | 8 g |
| Speed controller rating | 20 A |
| Receiver channels | 4CH/6CH |
| Transmitter channels | 4CH |
| Weight (without battery) | 350 g |
Make sure the throttle stick and the throttle trim are in the minimum position before turning on the transmitter power switch.
Adjust the reverse torque and rudder trim, and check that the aileron and wing balance are correct; also ensure the main blade is properly taped.
