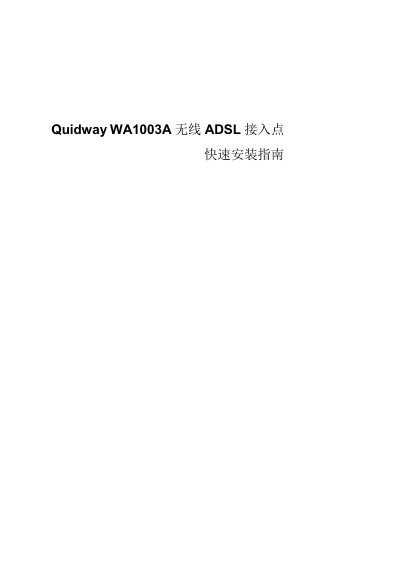

This document is a quick installation guide for Huawei Quidway WA1003A wireless ADSL access point, which covers installation preparation, connection setup, troubleshooting, and safety precautions.
The manual covers the complete setup of the Quidway WA1003A wireless ADSL access point, including hardware overview, power requirements, LED status indicators, and network configuration. It guides users through connecting the device to ADSL, Ethernet, and wireless networks, and explains how to verify operation.
Key sections include a block diagram, hardware description, step‑by‑step installation, connection methods (ADSL, LAN, USB, wireless), LED status meanings, power specifications, and a troubleshooting guide with common error messages and reset procedures. This manual is written in Chinese.
| Power Supply | 12V/AC 1.2A, 12V/DC 1.25A |
|---|---|
| Dimensions | 193 x 150 x 43 mm |
| Frequency Band | 2400 MHz – 2483.5 MHz |
It supports 802.11b with data rates of 1/2/5.5/11/22 Mbit/s and 802.11g with rates up to 54 Mbit/s.
The unit can be powered by 12 V AC at 1.2 A or 12 V DC at 1.25 A.
The device measures 193 mm × 150 mm × 43 mm.
