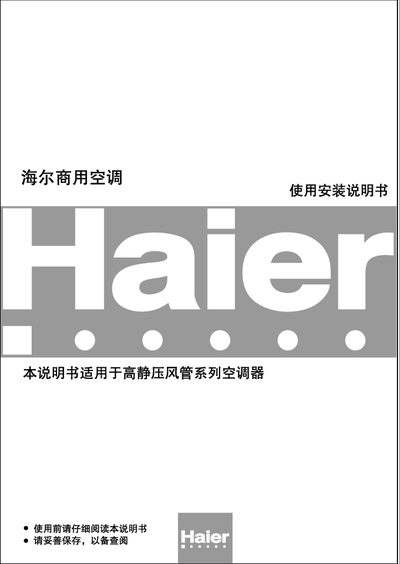

This manual provides step‑by‑step instructions for installing the Haier KF9(R)-125EW/E(H) commercial air‑conditioner. It includes safety precautions, wiring diagrams, and adjustment procedures to ensure correct operation.
Key sections cover safety warnings, operation points, parts identification, and technical specifications such as cooling capacity, power consumption, and voltage requirements. This manual is written in Chinese.
| Cooling Capacity | 12500 W |
|---|---|
| Power Consumption | 4900 W |
| Voltage / Frequency | 380 V, 50 Hz |
| Indoor Unit Weight | 62 kg |
| Outdoor Unit Weight | 91 kg |
The unit is designed for a 380 V, 50 Hz power supply.
Press the stop button for 5 seconds, repeat the operation four times, and the stop indication will disappear.
The cooling capacity is 12 500 W.
