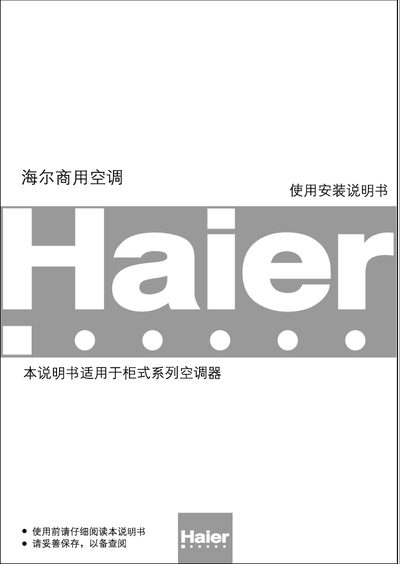

This manual provides step‑by‑step installation instructions, safety warnings, and operating guidelines for Haier KF(R)-250LW series split‑type air conditioners. It also lists the parts names and explains how to calibrate the controller.
Technical data such as power supply, cooling capacity, noise levels and dimensions are presented in a performance table, and warranty contact information is included at the end of the document. This manual is written in Chinese.
| Model numbers | KF-250LW7A / KFR-250LW / KFRd-250LW |
|---|---|
| Power supply | 3N‑380V 50Hz |
| Cooling capacity | 25000 W |
| Power consumption (cooling) | 10500 W |
| Outdoor noise level | 64 dB(A) |
| Outdoor unit weight | 130 kg |
The unit requires a 3N‑380 V, 50 Hz power supply.
The cooling capacity is 25 kW (25000 W).
